Autel EVO Max 4T - A Leader of Drone Intelligence
Â
The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.

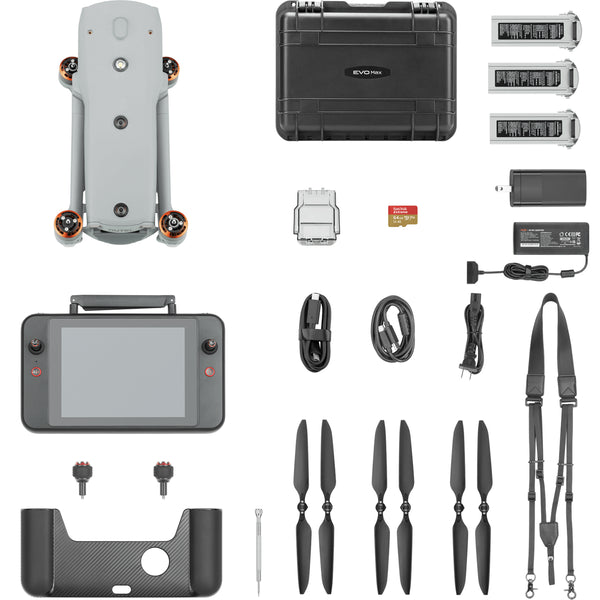

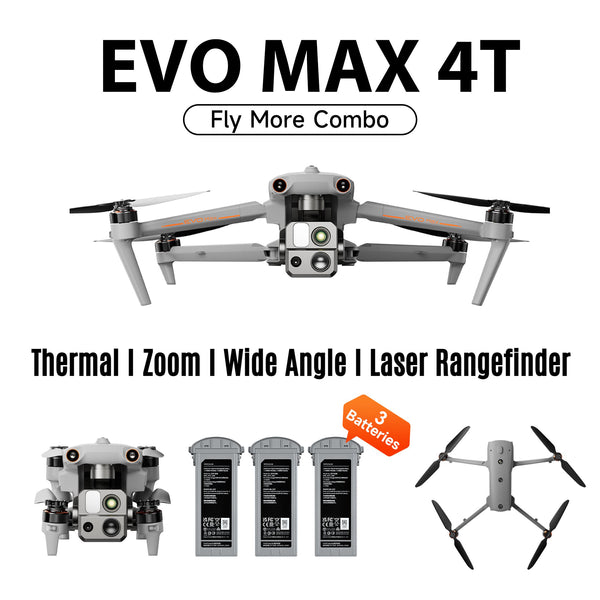

- With 3 Batteries, Fly More
- 8K 10x Optical Zoom
- Thermal Camera:640x512 | 16x Digital Zoom
- Wide Camera: 50MP | 1/1.28" CMOS
- Zoom Camera: 48MP | 8K 10x Optical Zoom(160x Max)
- Laser Rangefinder
- Autel SkyLink 3.0 | 12.4 miles Transmission Range
- 720° Obstacle Avoidance
- 42 mins Max Flight Time
- A-Mesh 1.0 | Mesh Networking Technology
- 3D Map Planning | Multiple Mission Types | Data Security
- Multi-channel Projection Screen*
- Autel SDK
Brid Sensor Payload
The EVO Max 4T payload integrates wide-angle, zoom and thermal camera with a laser rangefinder for all data capture needs and critical decision making.
Laser Rangefinder
Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.
Thermal Camera
Equipped with 640x512 high-resolution radiometric thermal imaging camera, 30fps and 16x digital zoom.
Wide Camera
Autel's Moonlight Algorithm 2.0 boosts post processing and allows the pilot to capture crisp, detailed images in low-light environments.
Video: support 4K 30fps, max ISO 64000.
Photo: Moonlight mode reduces noise and enhances HDR.
Zoom Camera
Supports for 8K 10x optical zoom and 160x Max. Hybrid Zoom with clear details on targets up to 1.24 miles away.
A Leader in Drone Intelligence
The EVO Max 4T comes equipped with a wide array of features and capabilities that range from Autonomous Path Finding, Navigation in GPS Denied Environments, and Accurate Object Identification and Tracking.
Autonomous Path Finding
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation In GPS Denied Environments
Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification And Tracking
Based on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement personnel.
No Blind Spots
Ultimate Obstacle Avoidance
EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
*Obstacle Avoidance performance varies with drone speed, lighting, and flying conditions and is not meant to replace pilot responsibility.
Anti Jam, Anti Interference
Weather Rating-IP43
Platform Capability
EVO Max 4T redefines portability with its powerful platform and all weather design.
- 42 Minutes of Maximum Flight Time
- IP43 Ingress Protection Rating
- 27 mph Maximum Wind Resistance
- 23,000ft Service Ceiling
- 12.4 Mile Transmission Range
Hot-Swappable Battery
Autel Max 4T hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.
A-Mesh 1.0
The Drone Industry's First Mesh Networking TechnologyÂ
The EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration for seamless enterprise operations.
Strong Anti-Interference
The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight Applications
With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Full-Fleet Control
Multiple drones can be controlled autonomously by one pilot or by a group of pilots simultaneously with or without LTE coverage.
Enhanced Range
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Autel SkyLink 3.0
The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.
- 12.4 Mile Image Transmission Range
- 1080p/60fps Real-Time Image Quality
- 900MHz/2.4GHz/5.2GHz/5.8GHz Frequency Bands**
- <150ms Latency
*This feature will be available in a future update.
**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.
Smart Features
The EVO Max 4T comes equipped with the following intelligent features that were tailored for commercial end users:
3D Map Planning
Plan, create, and execute 3D waypoint mission plans on a 3D map.
Mission Reproduction*
Fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max 4T will automatically record the camera angles and replicate the mission you just flew.
Quick Mission*
Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
Multiple Mission Types
The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.
 Waypoint Missions
Users can add waypoints for flexible, non-structured flight paths.
Rectangular Mission
Supports one-click automatic generation of a rectangular flight area.
Automatic Mission (Generation And Data Capture*)
Automatically produce routes by adding regional boundary points through dots or importing KML files.
 Terrain Follow*
Maintain relatively constant altitude from the ground for uneven or sloped terrain.
Oblique Photography
Automatically plan 5 groups of routes (1 ortho + 4 oblique) according to the flight area set by the user.
Spiral Mission*
Supports helical flight search in a designated area for SAR.
Supports one-click automatic generation of polygon flight areas.
Vertical Scan*
Perform vertical surveys for building facades, open pit walls, and towers.
Corridor Mission*
Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow, large-scale terrain.
*This feature will be available in a future update.Â
Â
Data Security
 Featuring AES 128/256 storage, radio link and network encryption for operational security.
Privacy Protection:Â Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage:Â Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View
Multi-channel Projection Screen*
Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
AR Scene*
Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.
*This feature will be available in a future update.
Complete Remote Operations System
Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK
Open UX SDK (iOS & Android) can directly call up the ready-made interactive interface.
Payload SDK*
Unified interface standards support access to third-party mounts such as microphones and gas detectors.
Cloud SDK*
Enables remote live broadcast and control of drones and Nests through third-party platforms or web pages.
Accessories
-
Autel Smart Controller V3 Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
-
Live Deck 2 (optional) Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision making without the need for LTE connection. The EVO Max 4T is compatible with Live Deck 2, which offers multiport streaming to monitors and Wi-Fi support for multiple local smart phones.
-
RTK Module (optional) Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
Application
The Autel EVO Max 4T was designed for survey and inspections, search and rescue operations, public safety, and many other commercial applications.
