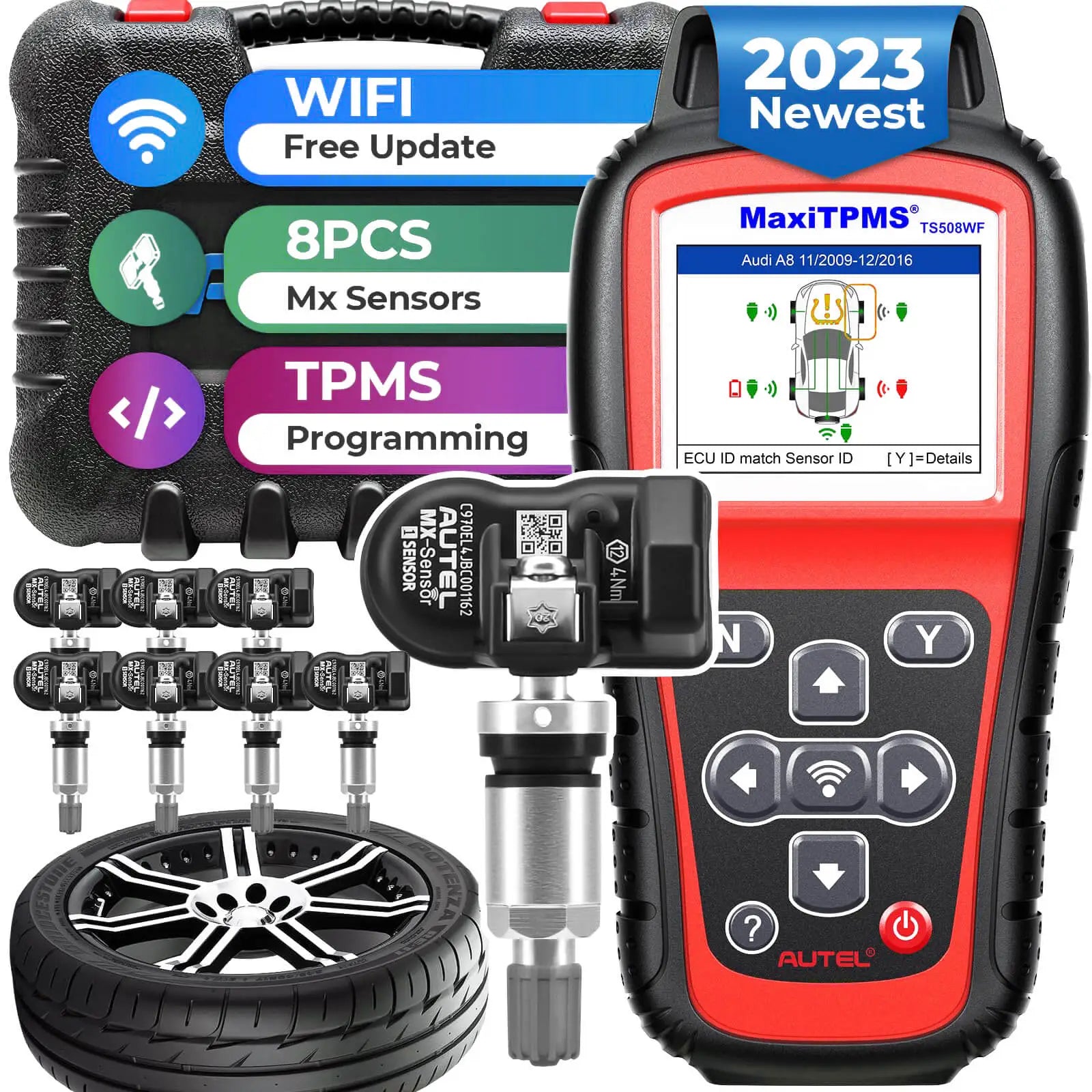

Autel MaxiTPMS TS508WF TPMS Relearn Tool, Activate Read Clone Copy TPMS Sensor Program MX Sensor Read/Clear TPMS DTCs Check Key FOB Free Lifetime Update Better TS408 TS508

Autel 2023 Newest TPMS Tool

The TS508WF is a TPMS service tool. It is Autel’s first non-tablet tool providing Wi-Fi software updates. It features Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has 4 methods of MX-Sensor programming, and performs placard value resets on supported vehicles. The TS508WF displays on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests.

Autel MaxiTPMS TS508WF is an upgraded version of TS501, TS408 and TS401.

Comparing with TS501, TS508WF has added Quick & Advanced Modes for faster and smarter TPMS repairs, added Tire Type/Pressure Selection for added TPMS services.

Comparing with TS408, TS401, TS508WF has added TPMS diagnose capability to read and clear TPMS DTCs, added OBD2 connector to enable users to program sensors by “Copy by OBD” and relearn sensors via “OBD Relearn”

1 Second to Read and Erase DTCs

1 Second to Read and Erase DTCs: Scan TPMS system, retrieve ECU information, locate problems， Read fault code, find out the problems, and turn off the TPMS light.

The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment.

Autel TS508WF = TPMS Tool + Code Reader Autel MaxiTPMS TS508WF is a powerful all-in-one TPMS scan tool, not only it can program/activate/relearn the sensors, but also can scan the TPMS system, do TPMS diagnostics, and read/clear the codes.

TS508WF TPMS programming tool can be likened to a signal transmitter. The key fob test function designed on TS508WF can be used to check the frequency of the key fob and battery electricity to determine whether it needs to be charged or replaced

TS508WF TPMS diagnostic tool: TS508WF can quickly scan the TPMS system to check TPMS and sensor state and pinpoint the problems so that users could timely repairs and maintenance. TS508WF Code Reader: TS508WF will read TPMS faulty codes and give specific code descriptions to facilitate clearing the code and turning off the light.

There Ways TPMS Sensor Relearn

Autel TS508WF TPMS Relearn Tool can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles (American, European and Asian) to the vehicle’s ECU. It offer there methord for TPMS Relearnning:

Stationary Relearn: This relearn way requires the vehicle to be placed in the “Learn Mode” and follow the instructions to finish “Relearn”.

Automatic Relearn: For some vehicles, can be completed by driving.

OBD Relearn: OBD relearn allows the TS508WF TPMS relearn tool to directly write the TPMS sensor IDs to the TPMS module via the OBD connector to make the on-board TPMS modules recognize the new sensors. That is so convenient! (Note: TS401& TS408 not available with OBD Relearn)

EXCLUSIVE TPMS STATUS SCREEN

1.Read ECU sensor ID;

2.Check sensor ID and ECU ID matching condition;

3.Read DTCs from ECU and erase DTCs;

4.View DTCs detail description;

FOUR MX-SENSOR PROGRAMMING OPTIONS

1.Copy By Activation;

2.Copy By Manual Input;

3.Auto Create 1-16;

4.Copy By OBD;

TWO TPMS SERVICE MODES

The TS508WF is a new generation completeTPMS tool that offers the option to choose one of two service modes from the home screen,to provide faster and smarter TPMSrepairs.Based on the TPMS service type neededthe option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time

Autel TS508WF TPMS diagnose Tool enables you to view the saved TPMS DTCs, tire type and pressure information and print it out via PC for further analysis. MaxiTPMS TS508WF comes with LIFETIME software updates, please update the software to the latest for best vehicle coverage.	When your key fob starts to acting up or stops working, you would be happy to have TS508WF TPMS universal tool in your tool arsenal to test the signal strength of the key fob instead of visiting a dealership.

Autel TS508WF is upgraded of TS501.Autel TS508WF TPMS scanner with Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TPMS Quick Mode: Scan Sensor, Program Sensor, Relearn Procedure and Sensor Information.Basic TPMS functions to check TPMS sensors and program MX-Sensors quickly; Advanced Mode: The Advanced service mode performs additional TPMS functions: TPMS Diagnose, Program Sensor, Position Relearn and Information (OE and MX Sensor data and vehicle OBDII port location diagram).

Autel TS508WF has TPMS diagnose function. It is used to find out TPMS related problems. You can check sensor-related problems, deflation in the tires and the rotation of wheels. TS508WF can read or clear TPMS DTCs,on-screen DTC description to perform DTC Lookup. It can help you find out problems with TPMS system faster.
